Overview
|
SYEC’s CVT
consists of a capacitor voltage
divider and an electromagnetic unit
including the medium and low voltage
terminal of the capacitor voltage
divider which leads out into an oil
tank equipped with an electromagnetic
unit. The electromagnetic unit has
three parts: middle transformer, a
compensation reactor and a damper.
The capacitor
voltage divider has a bushing, a core
and a metal expander. The core of the
capacitor is combined by several
film-paper composite media and serial
parts which are made by coiling aluminum
foils. The core is carried out by a
vacuum dipping treatment. The porcelain
bushing is then filled with transformer
oil, and equipped with the metal
expander to compensate for the change in
oil volume due to the temperature
change.
|
 |
The series transformer has a quick saturation damping device with a quick transient response speed, and it also can damp ferro-resonance reliably.
There is a carrier wave communication terminal in the secondary outlet box, and it also has an over-voltage protection clearance.
The sealing structure of product is optimized, so it has a good sealing performance.
The product comes equipped with a carrier-frequency accessory, located on the output terminal box for convenient installation and maintenance, including a drain coil, a grounding switch, and a gap to protect the ball. The carrier frequency range is 30 ~ 500kHz.
SYEC's IEC Type CVT -TYD series has been used in up to 750KV and 1000KV substations and in early 2018, SYEC has been awarded by National Grid UK for 3 years supply of the LVB series instrument transformers.

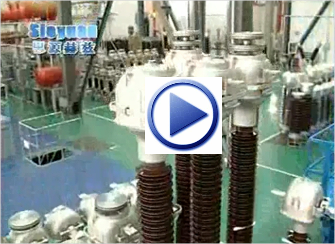

SYEC Instrument Transformer Factory Video
